JCF1000A 10Gbps Clock & Data Recovery Kit

The main application of Clock & Data Recovery Kit is used for in–line transmit Eye diagram measurement, most of sampling scope such as Agilent 86100C/D + 86105C provides Optical Eye pattern measurement capacity, but it needs embedded clock trigger to synchronous the measurement results.

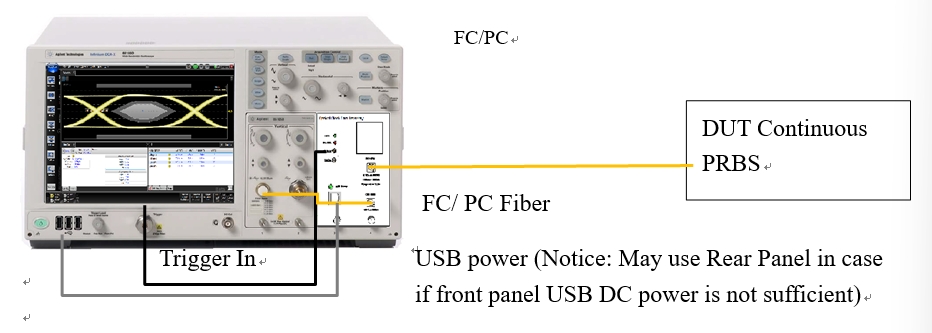

J-Great CDR module is the solution to collaborate with the sampling scope that helps recover the clock corresponded to the data stream. With internal coupler, it can generate the clock signal in Electrical path and split the same optical signal into sampling scope at the same time.



System specification:

Clock recovery data rate

OC-192 SONET

9.95328 Gbps

10Gbps Ethernet

10.3125 Gbps

10Gbps Fiber Channel

10.51875 Gbps

ITU G.709

10.709 Gbps

Optical power range               +6 ~ -10dBm

Electrical Clock /Data out      400mVpp in typical

Electrical Impedance              50 Ohm in Typical

Optical Coupling ratio            10% (CDR) - 90% (Output)

Jitter Transfer Bandwidth       6MHz

Jitter Generation                    10m UI rms in typical @ PRBS31-1

Optical In/ Out interface        FC/ PC 9/125um SMF

Electrical Output interface     SMA Female (Data/ Clock)

USB Power consumption       5V @ 400mA; 2W

Net Weight               1.6KG

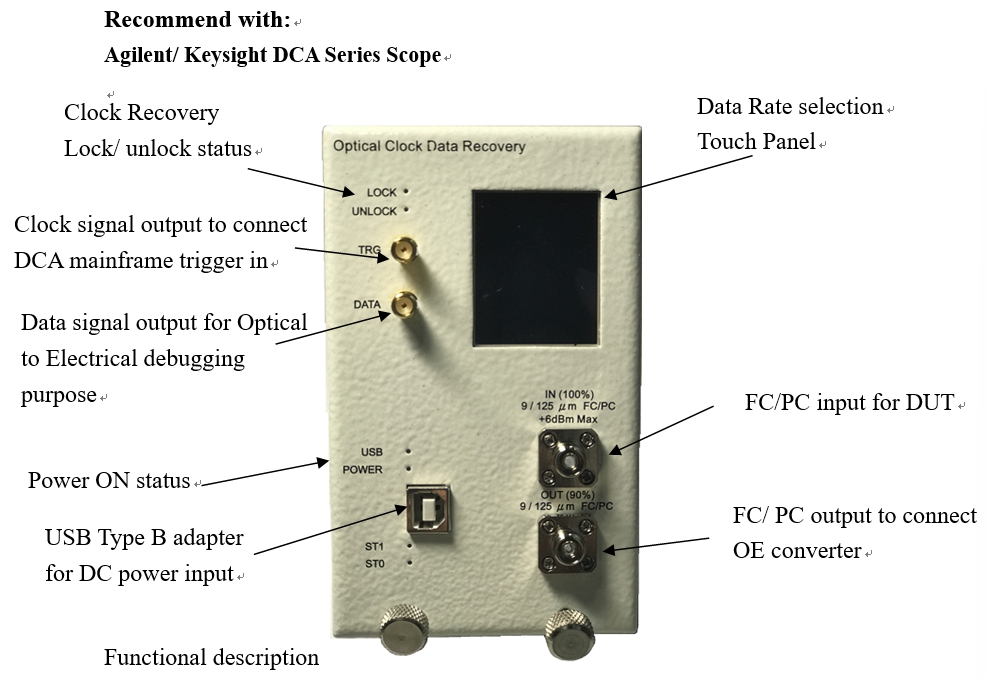

Recommend with:

Agilent/ Keysight DCA Series Scope
