System specification:
Clock recovery
OC-24 1244.16M (1.25Gbps)/ OC-48 2488.32M (2.5Gbps)
Optical power range
+5 ~ -20dBm
Electrical Clock /Data out
400mVpp in typical
Electrical Impedance
50 Ohm in Typical
Optical Coupling ratio
10% (CDR) - 90% (Output)
Jitter Transfer Bandwidth
750KHz @ OC-24, 1500KHz @ OC-48
Jitter Generation
10m UI rms in typical @ OC-48 PRBS23-1
Optical In/ Out interface
FC/ PC 9/125um SMF
Electrical Output interface
SMA Female (Data/ Clock)
USB Power consumption
5V @ 400mA; 2W
Digital IO Control
3.3V LVTTL GND/ Status Ping / Data Rate select Ping.
Extension Date rate option
Optional 9.95328/ 10.3125Gbps (Please contact J-Great sales)
Temperature Operating +5°C to +40°C, Storage: -20°C to +50°C
Humidity Operating: 0% to 80% relative humidity
Dimension 25cm x 20cm x 4 cm

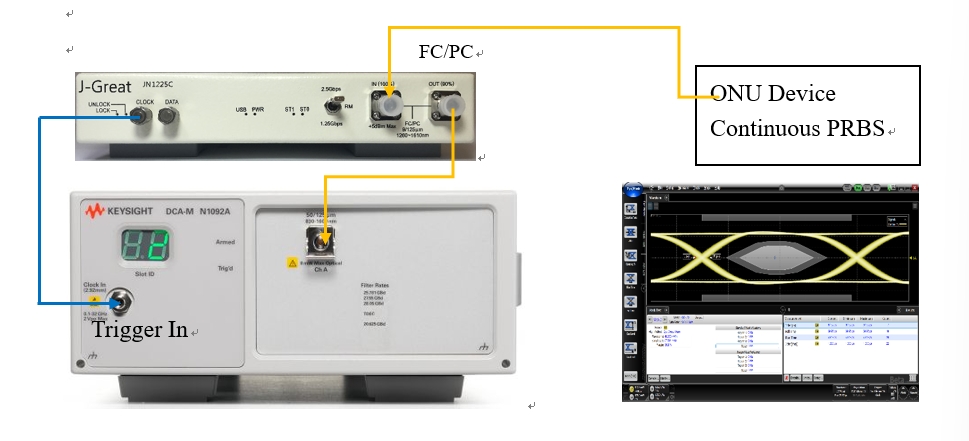

Recommend with:
Agilent/ Keysight DCA Series Scope
