System specification:
Clock recovery OC-24 1244.16M (1.25Gbps)/ OC-48 2488.32M
(2.5Gbps)
Optical power range +5 ~ -20dBm
Electrical Clock /Data out 400mVpp in typical
Electrical Impedance 50 Ohm in Typical
Optical Coupling ratio 10% (CDR) - 90% (Output)
Jitter Transfer
Bandwidth 750KHz @ OC-24, 1500KHz @
OC-48
Jitter Generation 10m UI rms in typical @ OC-48 PRBS23-1
Optical In/ Out interface FC/ PC 9/125um SMF
Electrical Output interface SMA Female (Data/ Clock)
USB Power consumption 5V @ 400mA; 2W
Digital IO Control 3.3V LVTTL GND/ Status Ping / Data Rate select
Ping.
Extension Date rate option Optional 9.95328/ 10.3125Gbps (Please contact
J-Great sales)

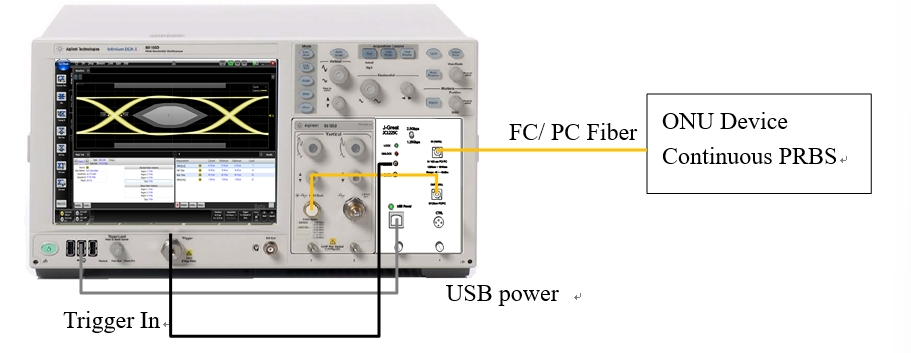

Recommend with:
Agilent/ Keysight 86100A/ 86100B/ 86100C/ 86100D Mainframe &
86103B/ 86105A/B/C Module
